Exxos 4 Meg RAM Upgrade - STM
2016-12-13 16.47.55
The kit - the edge connector is now pre-soldered
2016-12-13 17.00.21
Shifter riser soldering
2016-12-13 17.00.49
Socket for shifter soldering
2016-12-13 17.02.16

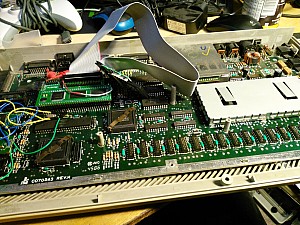

This is where it's going, an old STM. Note the spring clip on the MMU, this needs to be removed!
2016-12-13 17.02.33
Shifter - socketed, which is a relief :)
2016-12-13 17.04.44
Shifter board fitted
2016-12-13 17.07.19
Shifter re-added
2016-12-13 17.13.53

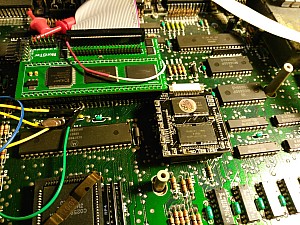

MMU board in place - difficult to make out, but it won't fit with the MonSTer board in place
2016-12-13 17.14.02

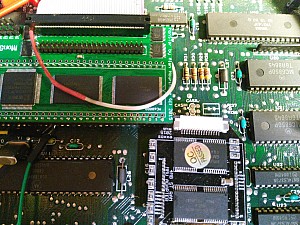

MMU board in place - difficult to make out, but it won't fit with the MonSTer board in place
2016-12-13 17.17.36
So, with the MonSTer popped out, I tried to fit it, but DISASTER! I has the pins set one too far back and my excitement to fit it, I pressed so hard that the back two pins popped through. I thought this would trash the board, but a very careful re-solder seems to have kept it alive, a lucky escape!
2016-12-13 17.20.46

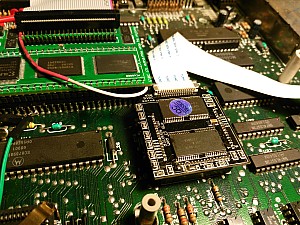

MonSTer board back in as well
2016-12-13 20.18.14
Two resistors need cuting and given 5v+, 133 in this pic
2016-12-13 20.18.21

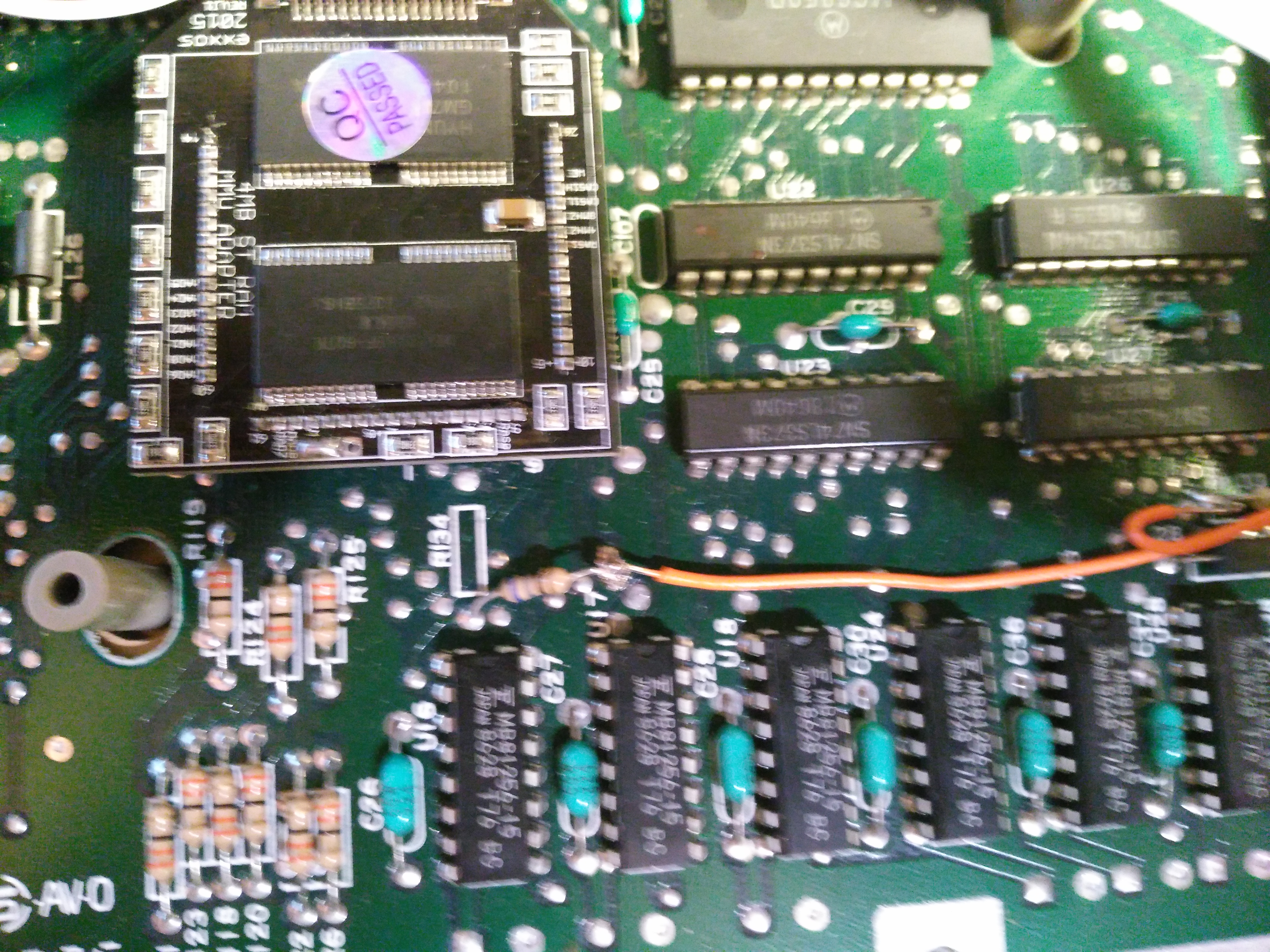

R134 in this (blurry) pic
2016-12-13 20.18.26

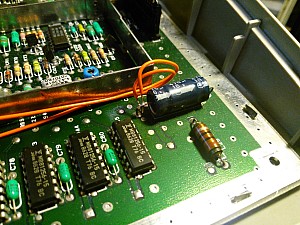

Linked to the 5v+ pin of the big capacitor
2016-12-13 20.20.02
overview of cable layout
a2016-12-13 18.37.08
Bootup RAM test looks good ...
a2016-12-13 20.16.55
And a few runs on a proper RAM tester also look good, so happy days
a2016-12-13 20.23.54

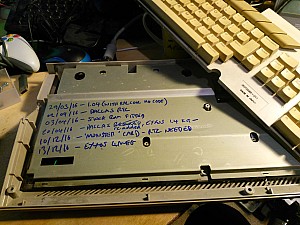

'modification list' updated :)
